MODERN Metal Seated Sluice (Gate) Valve
MODERN Sluice Valves characteristics
- Robust & reliable
- Pressure rating PN 10 ( 50 mm NB to 1500 mm NB)
- Pressure rating PN 16 ( 50 mm NB to 600 mm NB)
- Suitable for Raw, Clear, Waste & Sea water
- Minimal maintenance
- General conformity to IS 14846 / BS EN 1171 / BS 5163
- Flanges faced and drilled to IS 1538 table 4 & 6 / IS 6392 / BS 4504 / BS 10 / IS 6392 / AWWA C 207 / ANSI B 16 / DIN standards.
- Length Over Flanges: PD of IS 14846 / ISO 5752 Basic Series 3
Non Rising Spindle Sluice Valves
Rising Spindle Gate Valve
Sluice Valve Major Component |
Material of construction |
|||
Body / Door / Dome / Cover /Bonnet |
Cast Iron / Ductile Iron / Cast Steel |
|||
Stool / Yoke / Adaptor |
Cast Iron / MS fabricated |
|||
Spindle |
Stainless Steel: AISI 410 / AISI 431/ AISI 304 / AISI 316 |
|||
Body seat / Door face Rings |
Gun metal LTB 2 / LG 2(2% Ni) / SS 304 (CF8) |
|||
Gland packing |
Greased hemp / CAF |
|||
Fasteners |
Carbon Steel / SS 304 |
|||
MODERN Sluice Valve Optional accessories:
- Back Seat Bush – Gun metal – 200mm ø and above (for re-packing under pressure)
- Shoe & Channel – Gun metal / SS 304 – 400mm ø and above (not recommended for sewage duty)
- Ball thrust bearings – 400mm ø and above sluice valves
- Gear Box – Enclosed spur / worm / bevel with or without Mechanical Position Indicator – 200 mm ø and above
- Drain Plug – optional for 400mm ø and above sluice valves
- By – pass arrangement- optional (400mm ø and above sluice valves)
- Head stock operation

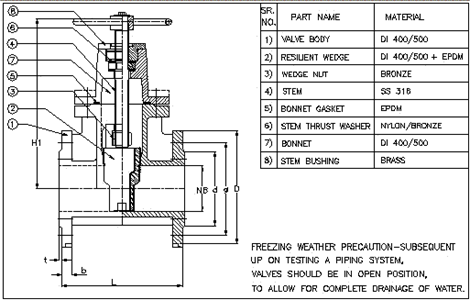

MODERN Resilient Seated Pocket Less Sluice Valve (Non-Rising Spindle)
- Ductile Iron Body
- Rubber encapsulated DI wedge
- Glandless
- Pocket less – smooth flow
- Ease of operation – Maintenance free
- Liquid epoxy coating
- Reference standard: IS 14846 / DIN / BS AWWA C – 509
- Flanges conform to BS EN 1092 – 2 / DIN 3202
- PN 10 & 16
All dimensions in mm.
DN |
PN |
LENGTH OVER |
N |
ød |
D |
ø |
d |
b |
t |
H1 |
H/w ø |
PD IS14846 / BS 5163 |
|||||||||||
50 |
1.0 |
178 |
4 |
19 |
165 |
125 |
98 |
19 |
3 |
253 |
200 |
1.6 |
|||||||||||
65 |
1.0 |
190 |
4 |
19 |
185 |
145 |
118 |
19 |
3 |
284 |
200 |
1.6 |
|||||||||||
80 |
1.0 |
203 |
8 |
19 |
200 |
160 |
133 |
19 |
3 |
320 |
250 |
1.6 |
|||||||||||
100 |
1.0 |
229 |
8 |
19 |
220 |
180 |
153 |
19 |
3 |
343 |
288 |
1.6 |
|||||||||||
125 |
1.0 |
254 |
8 |
19 |
250 |
210 |
183 |
19 |
3 |
408 |
350 |
1.6 |
|||||||||||
150 |
1.0 |
267 |
8 |
23 |
285 |
240 |
209 |
19 |
3 |
425 |
350 |
1.6 |
|||||||||||
200 |
1.0 |
292 |
8 |
23 |
340 |
295 |
264 |
20 |
3 |
530 |
380 |
1.6 |
12 |
23 |
|||||||||
250 |
1.0 |
330 |
12 |
23 |
400 |
350 |
319 |
22 |
3 |
621 |
450 |
1.6 |
12 |
28 |
355 |
||||||||
300 |
1.0 |
356 |
12 |
23 |
455 |
400 |
367 |
24.5 |
4 |
703 |
500 |
1.6 |
12 |
28 |
410 |
* sizes larger than 300mm Φ on request
** can be supplied with Cap / Handwheel / Electric actuator
MODERN Knife Gate Valve (for Fluids, Slurries and Dry products)
Application:- Sewage treatment plants
- Chemical & raw Material industries
- Food Industry
- Mining and allied industries
“When space is a limiting factor, the liquid has fibrous substance that can get lodged in the bottom cavity of a valve body, the hydraulic heads moderate, a Knife Gate Valve can do the job admirably. However, exercise caution when choosing a knife gate valve over the time tested Gate Valve”
The minimum stress point in a knife gate valve is somewhere near the major axis between the two vulnerable section probably where the short and long side join. Therefore provide as large a fillet radius as possible as stress here appreciably increases with diminishing radius. A square cornered chest would induce abnormally high stress. The reason why all pressure vessels are rounded with no sharp corner.
