Air Release Valve

MODERN Automatic Air Valves for Water Mains

  • Single Orifice Air Valve - Air relief during normal running
  • Single Orifice Air Valve - Air release /Suction during filling or draining
  • Dual Orifice Air Valve - Combination air valve
  • IS 14845 and AWWA C512
  • Anti Vacuum Valve







Cluster for large main

The presence of free air in pipeline can reduce the severity of water hammer considerably. Celerity(speed) of an elastic wave with, say 2% of air at a pressure head of 50m of water reduces celerity from about 1100m/s to 160 m/s for a typical pipe line. On the other hand air in a rising main, whether in solution or in bubble from can have number of ill effects.

  • Cavitation - The formation of vacuous cavities which subsequently rapidly collapse and erode the pump or pipe
  • Head loss - Accelerating water past air pockets formed in pipes, leading to head losses
  • Other forms may include surging, Corrosion, reduced pump efficiency, malfunctioning of valves or vibrations

A pipeline designer therefore has to factor in all the aforesaid, the critical level of permissible vacuum inside a pipeline to prevent collapse vis-a-vis the suction and discharge capacity of an air valve (curves on request) before deciding upon the type, size, spacing and location of these air valves.


Valve size

For Mains size

50ø

Upto 200ø

80ø

225 - 350ø

100ø

400 - 500ø

150ø

600 - 900ø

200ø

1000 - 1200ø


Air Valve - GUIDELINE FOR USAGE:

  • Normally 10 bar rated, 16 bar or higher pressure on request.
  • Single Air Valve of size 1” as per IS: 14845 can be supplied, suitable for 100 NB mains.
  • Not recommended for sewage application.

For mains size larger than 1200 NB, it is recommended that a cluster of 2 or 3 air valves be used in one location


Single Air Valve



Double Air Valve

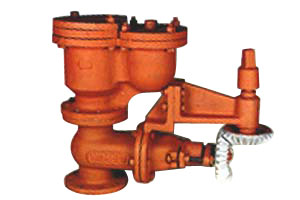

Kinetic Air Valve


Air Cushion Valve

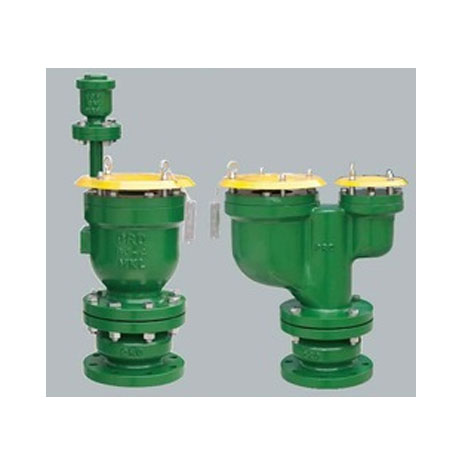

Double jet

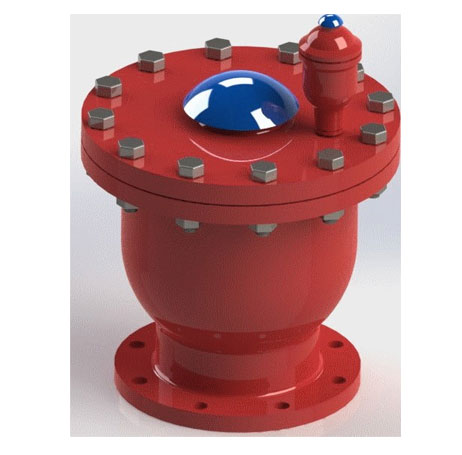

Tamper proof air valve
